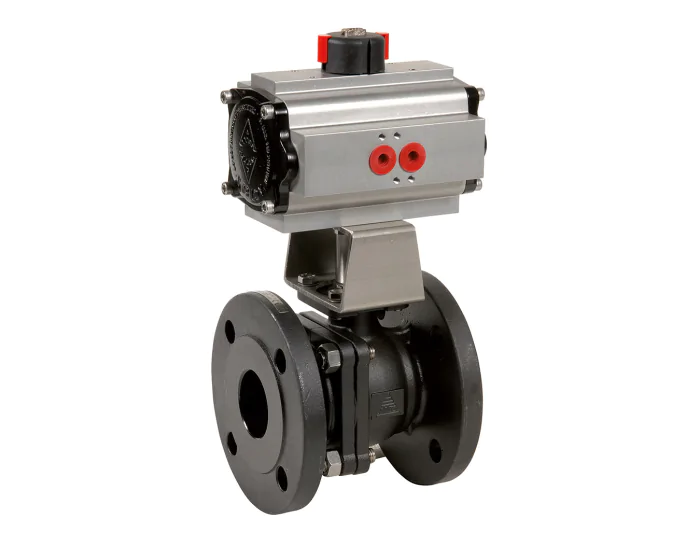

The 762 series carbon steel ball valve has an A216WCB body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN100.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Connections | Flanged PN16/40 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting | 274242015100 | S1002738 |
€248.90
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return | 274242016101 | S1002739 |
€297.93
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting | 274243015100 | S1002740 |
€250.59
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return | 274243016101 | S1002741 |
€306.57
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting | 274244015100 | S1002742 |
€291.09
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return | 274244016101 | S1002743 |
€327.49
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Double acting | 274245015101 | S1002744 |
€350.06
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Spring return | 274245016102 | S1002745 |
€403.10
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Double acting | 274246015101 | S1002746 |
€411.59
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return | 274246016103 | S1002747 |
€487.97
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting | 274247015102 | S1002748 |
€499.64
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return | 274247016104 | S1002749 |
€599.36
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Double acting | 274248015103 | S1002750 |
€670.31
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Spring return | 274248016104 | S1002751 |
€736.07
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Double acting | 274249015103 | S1002752 |
€760.01
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return | 274249016105 | S1002753 |
€935.99
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting | 274250015104 | S1002754 |
€993.16
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return | 274250016106 | S1002755 |
€1,222.46
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Double acting | 274251015105 | S1002756 |
€1,800.19
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Spring return | 274251016107 | S1002757 |
€2,009.16
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting | 274252015107 | S1002758 |
€2,259.99
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return | 274252016108 | S1002759 |
€2,681.01
(excl. btw)
|
add to cart |
| Flanged PN16/40 Carbon steel A216 WCB (1.0619) Full 2-piece body DN200 - 8'' Double acting | 274253015107 | S1002760 |
€3,606.14
(excl. btw)
|
add to cart |
